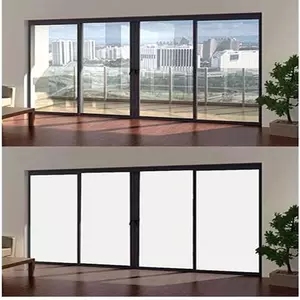

Laminated LCG® smart glass with Gauzy’s premium Polymer Dispersed Liquid Crystal (PDLC) technology allows glass to turn on, off, or anywhere in between in milliseconds for diverse light control applications
Gauzy’s wide range of indoor and outdoor grade PDLC technologies are laminated by our global network of certified glass fabricators to create laminated smart glass. Smart glass with PDLC technology provides various industries the flexibility to control different types of light, while supporting:
 |
 |
 |
 |
| Dynamic Privacy | Temperature Control | High ROl | Dynamic Designs |
| Complete privacy ortransparency when you need and want it most |
Solar Control smart films reflectIR light providing coolerinteriors and less HVAC costs | Mitigate longterm costsassociated with cleaning.cooling, and signage | Custom shapes and patterns add style and function to windows and partitions |
 |
 |
 |
| Optimize Space | Easy To Clean | Enhance Wellbeing |

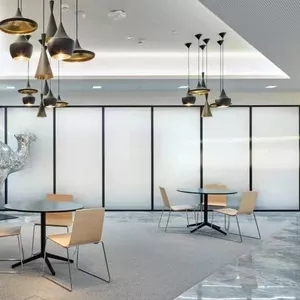

| Replace thick studded walls with thinpartitions or section open floor plans with minimalist solutions | Eliminate fabric or electronic curtainsthat are hard to clean and collect germs while affecting designs | Provide light or privacy and give users flexibility to control their space for greater sense of control and wellbeing |
• Ultra low haze: avg.2.5%
• UV Blocking: 99%
• Minimal energy consumption: avg.3w/m?
• Operating Voltages: 42-70VAC
• Switching Times: 10ms
• Max Width: 1.8m (5.9ft) wide
• Standard or custom shapes with holes, notches
• Glass Types: Annealed, Tempered, Clear, Low lron/Ultra Clear, lG Units. otherIndoor and outdoor grades availableRolls or C2F sheets for professionals
• Compatible with PVB, EVA, TPU, SGP interlayersCustom laser-etched patterns
• Compatible with all Gauzy controllers
PERFORMANCE SPECIFICATIONS
| THICKNESS MM |
SPECIFICATION | COLOR | IGDB | LIGHT PROPERTIES% | SOLAR ENERGY% | RW VALUE | U VALUE | SHGC | SC | ||||||
| Trans | Refl Out | Refl In | Trans | Rfsol | Rbsol | Abs1 | In Winter | In Summer | |||||||
| SMART SINGLE GLAZED LAMINATED | |||||||||||||||
| 9.92 | SUPERCLEAR SMART GLASS (With Gauzy® Switchable film) | Clear swift to frosted when power off | 86.2 | 7.7 | 7.7 | 76.8 | 7.1 | 7.1 | 35 | 5.68 | 5.13 | 0.82 | 0.94 | ||
| 17.92 | SUPERCLEAR SMART GLASS (With Gauzy® Switchable film) | 84.9 | 7.5 | 7.5 | 73.6 | 6.9 | 6.9 | 39 | 4.92 | 5.42 | 0.80 | 0.92 | |||
| COMF-E® OPTIMUM SMART DOUBLE GLAZED UNITS | |||||||||||||||
| 27.92 | COMF-E Optimum SMART 141(6/12/9.92)#2 | Clear swift to frosted when power off | 77.4 | 12.2 | 11.5 | 49.5 | 23.6 | 21.5 | 40 | 1.45 | 1.40 | 0.57 | 0.66 | ||
| 35.92 | COMF-E Optimum SMART 141(6/12/17.92)#2 | 76.2 | 12.0 | 11.2 | 48.0 | 23.5 | 19.6 | 41 | 1.43 | 1.38 | 0.57 | 0.65 | |||
| Note: 1. The above Landson Glass’ performance specifications are created using LNBL Windows 7.4 Software. External conditions are subject to ASHRAE NFRC100-2010 standard (US standard). 2. Information provided for guidance only and should not be treated as a substitute for detailed technical advice. Landson Glass disclaims any liability for loss or damage suffered from the use of such data. 3. U Values in the table are based on Winter climate only. 4. To the best of Landson Glass’ knowledge, all information is believed to be true and correct at time of compilation. |
|||||||||||||||
